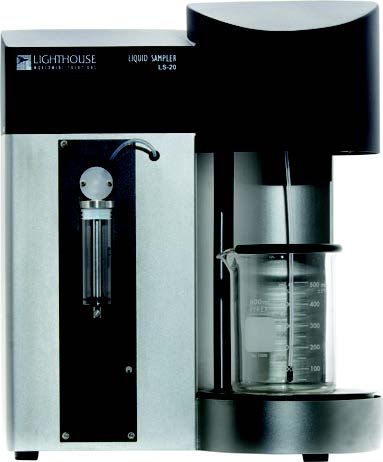

THE LS20 Liquid Sampler has an integratedsyringe sampler and optical particle counting system.It’s easy-to-use Windowstm based software interface is designed to meet the European Pharmacopeia (EP) and Japanese Pharmacopeia (JP) as well as US Pharmacopeia USP 788 international regulatory requirements.
The LS20 uses a high accuracy syringe pump flow control system and a high sample volume sensor. With sample volumes adjustable from 1 to 1000 milli Liters (with 10ml and 25ml syringe options), it is a perfect tool for multiple batch sampling applications.
The graphical user interface makes the LS20 easy to configure and operate. Data automatically records up to 8 particle size channels from 1.0 to 50.0 microns and is available in real time graph and tabular form.
F E A T U R E S
1.0 μm to 50 μm size range
Integrated “light obscuration” particle counter
Software designed for 21 CFR Part 11 compliance
International reglatory EP and JP recipes and reports
Preconfigured USP 788 recipes and reports
Sample volumes 1 to 1000 milliliters
Precise syringe pump flow control
Stainless steel enclosure
Built-in magnetic stirrer
Compact footprint
2 year warranty
Features | User defineable 1.0 - 50.0 μm |
Size Range | 1.0, 2.0, 3.0, 5.0, 10.0, 15.0, 25.0, 50.0 μm |
Calibrated Channel Sizes | 20 ml/minute |
Flow Rate | Laser diode |
Laser Source | NIST traceable |
Calibration | 10 ml, 25 ml |
Syringe Sizes | 1 liter |
Maximum Sample | RS-485 MODBUS |
Communication Mode | Teflon (PFA), Quartz, Kalrez, Kel F, Polypropylene |
Wetted Components | Magnetic with adjustable speed |
Stirrer | RJ-45 |
Connectors | LS Software |
Supporting Software | Stainless steel |
Enclosure | 100-240 VAC, 24 VDC to LS20 |
Power | 12.875”(l) x 8.75”(w) x 14.75”(h) [32.7 x 22.2 x 37.5 cm] |
Dimensions | 20.5 lbs (9.3 kg) |
Weight | User defineable 1.0 - 50.0 μm |
Environmental Conditions:
Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage: 14°F to 122°F (-10°C to 50°C) / up to 98% non-condensing
Minimum System Requirement
Windows 7TM or Windows 10TM compatible computer.
Included
LS20 instrument, USB to RJ45 cable, power supply, 500 ml beaker with edge guard, 10 feet of tubing, flow cell cleaning solution; nut and ferrule kit;
2x magnetic stir bars; Operators Manual and LS Software on USB key; Calibration Certificate and Carry Case with wheels.
Optional
Printed operating manual; IQ/OQ Validation Documents, 10ml syringe; 5-piece beaker set (50, 100, 250, 600, 1000 ml beakers); certificate of origin.
