Lighthouse HANDHELD 3016 IAQ can hold up to 3000 records of particle data and the confi gurable recipe databasecan store up to 50 recipes for sampling and reports.
——

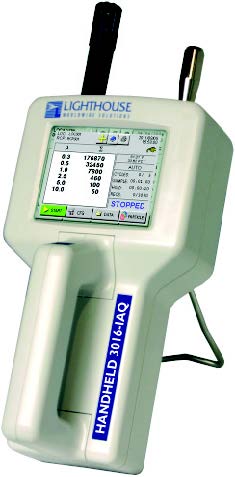

Lighthouse HANDHELD 3016 IAQ PARTICLE COUNTER
The ergonomically designed and lightweight Lighthouse HANDHELD 3016 IAQ is the newest, most advanced handheld particle counter on the market, featuring Mass Concentration Mode that approximates density in μg / m3.
Providing up to 6 particle size channels of simultaneous counting, Lighthouse HANDHELD Particle Counters can display cumulative and differential particle count data as well as Temperature/Relative Humidity data on the fast and easy to read color touch screen.
Lighthouse HANDHELD 3016 IAQ can hold up to 3000 records of particle data and the confi gurable recipe databasecan store up to 50 recipes for sampling and reports.
The HANDHELD 3016 IAQ monitors particulate levels accurately and reliably, even in “hard-to-reach” areas where two-handed operation is unsafe.
Features:
★0.3 - 10μm Size Range
★0.1 CFM (2.83 LPM) Flow Rate
★View 6 Particle Sizes Simultaneously
★Approximate Mass Concentration in μg / m3
★3.5” (8.89 cm) Color Touch Screen Interface
★Removable / Rechargeable Li-Ion Battery
★Large Memory for Storing Data (3,000 samples)
★Concentration Limit - 4,000,000/ft3
★Temperature/Relative Humidity Probe Included
★200 User Defi ned Alphanumeric Location Labels
★Easily Confi gurable Interface with Zoom Capability
★On Screen Data Buffer Viewing
★Molded Handle Allows One-handed Sampling
★Internal Audible Alarm
★Ergonomically Designed
★Lightweight
★Data Easily Downloaded to Computer
★50-record Confi gurable Recipe Database
Size Range: | 0.3 - 10.0 μm |
Channel Sizes: | Standard: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm |
Flow Rate: | 0.1 CFM (2.83 LPM) |
Counting Effi ciency: | 50% @ 0.3 μm; 100% for particles > 0.45 μm (per ISO 21501-4) |
Laser Source: | Extreme Life Laser Diode with >20 Years MTTF |
Zero Count Level: | <1 count / 5 minutes (per ISO 21501-4) |
Concentration Limits: | 4,000,000 Particles / ft3 @ 5% Coincidence Loss |
Calibration: | Meets ISO 21501-4 Calibration using NIST Traceable PSL Spheres, DMA and Condensation Particle Counter |
Count Modes: | Automatic, Manual, Beep, Concentration, Cumulative/Differential, Mass Concentration |
Data Storage | 3,000 Sample Records, Rotating Buffer (includes particle and environmental data, location and time) |
Communication Modes: | RS-232 via RJ-45 to PC or Printer |
Supporting Software: | LMS XChange; LMS Express; LMS Express RT; LMS Pharma; LMS Standard; CRQWin |
Environmental Sensors: | Temperature/Relative Humidity Probe: 0-150°F (-17.8 to 65.6°C) ±1.8°F @ 77°F, 0-100% ± 5% @ 33% |
Touch Screen Display: | 3.5” (8.89 cm), Color TFT |
Alarms: | Internal, Adjustable Alarm Buzzer. Alarms on Counts, Low Battery, Sensor Failure |
Sample Inlet: | Isokinetic Sampling Probe |
Sample Output: | Internally Filtered to HEPA Standards (>99.97% @ 0.3 μm) |
Vacuum Source: | Internal Pump, Automatic Flow Control |
Enclosure: | High Impact Injection Molded Plastic |
Power: | External Power Supply: 12VDC, 1.25A |
Battery: | Li-Ion, Removable & Rechargeable |
Dimensions: | 8.75” (l) x 5.0” (w) x 2.5” (h) [22.23 x 12.7 x 6.35 cm] |
Weight: | 2.2 lb (1kg) |
Languages: | English (U.S.), Deutsch, Español, François, Italiano |
Environmental Conditions: |
Operating: | 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing |
Storage: | 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing |
