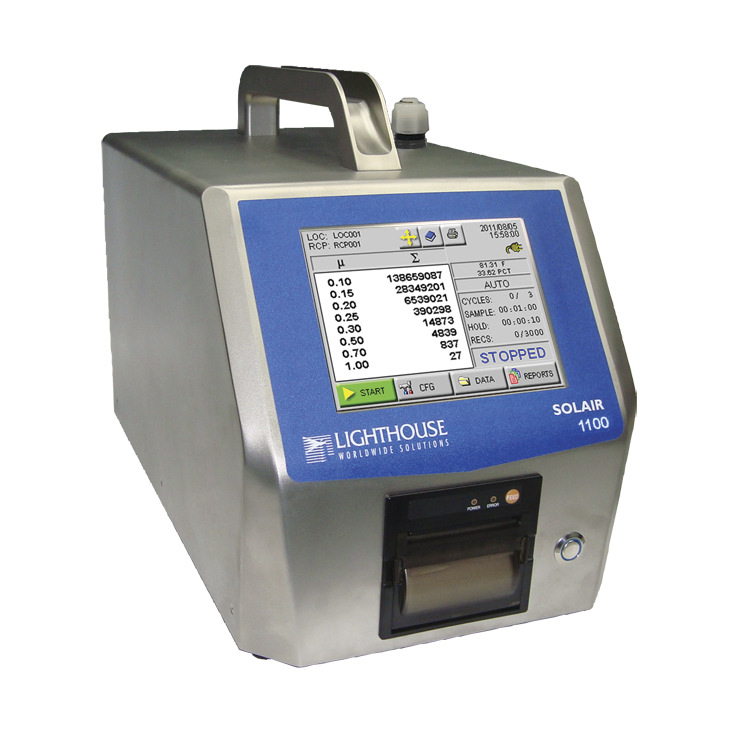

SOLAIR 1100LD

The SOLAIR 110oLD (Laser Diode) leads the industry asthe first of it's kind portable particle counter with 0.10 micron sensitivity and 1.0 CFM (28.3 LPM) flow rate using long life laser diode technology. Conventional HeNe (Helium Neon) particle counters require frequent cleaning, periodic Laser tube replacement and sufferlow concentration limits. The SOLAIR 110oLD is designed to operate in ISO Class 1 to Class 7 cleanrooms without concerns of it degrading its environment or exceeding concentration limits. The SOLAIR 110oLD uses an optics and photodiode system designed to reduce or eliminate the temperature issues associated with high power laser diode sensors.

The thermally-controlled exhaust system and HEPA filter option prevent any external contamination. Weighing just 26 Lbs (11.8 Kg) with the Li-lon battery option, the SOLAIR 1100LD is the smallest, lightest and coolest running 0.10 micron, 1.0 CFM portable particle counter on the market.

The easy to use icon-driven interface with multiple languages simplifies training and SOP writing. Its Cleanroom Standard report wizards make the SOLAIR 11ooLD the preferred cleanroom certification tool and eliminate the need for complex UCL calculations. Its flexible communication and data logging capabilities enable the SOLAIR 110oLD to connect to

Ethernet or RS-485 networks, connect point-to-point to a PC using USB or securely export its data to a USB Flash Drive.

The SOLAIR 11ooLD can be used as a portable instrument or easily integrated into a facility monitoring system.

Designed and built by

Lighthouse – a name you can trust.

Lighthouse is an ISO 9001:2008 Registered company.

Features:

★　0.10 um to 1.0 um Standard Size Range

★　1.0 CFM (28.3 LPM) Flow Rate

★　Simultaneous Display of up to 8 Particle Sizes

★　Designed for ISO 21501-4 Compliance:

Unit-to-Unit Accuracy and Repeatability

★ Designed to Enable 21 CFR Part 11 Compliance

when used with Additional Software

★　Long-life Laser Diode Sensor Technology

★　5.7-inch Color TFT Touch Screen Display

★　Optional Removable, Rechargeable Li-lon Battery

★　3,000-sample Data Storage Memory

★　Stainless Steel Enclosure

★　400 Alphanumeric Location Labels

★　Optional Easy-to-Load Thermal Printer

★ User-Definable Printouts

★ Report Wizard for Cleanroom Pass/Fail Reports:　FS-209E,ISO-14644-1or EUGMPAnnex1

★ Easily Configured Interface with Zoom Capability

★ Open Architecture Connectivity with OPC Server

★　Multiple Communication Interfaces - USB, Ethernet,RS-485 and USB Flash Drive

★　Multiple-language Support:

English, French, German, Italian, Spanish, Chinese,　Russian, Japanese, Korean

★ 50-record Configurable Recipe Database

Benefits:

2 Year Warranty

User Friendly Interface

Easy-to-Read Display

International Support

Low Cost of Ownership

Size Range:	0.10μm - 1.0μm, optional ranges up to 5.0μm
Channel Sizes:	Standard: 0.10,0.15,0.2,0.25,0.3,0.5,0.7,1.0μm
Flow Rate:	1.0 CFM (28.3 LPM)
Counting Efficiency:	50% @ 0.1μm; 100% @ sizes > 0.15μm Per JIS B 9921 and ISO 21501-4
Light Source:	Long Life Laser Diode
Zero Count Level:	<1 count / 5 minutes (per JIS B 9921)
Concentration Limits:	500,000 Particles / ft3 (17,150,000 / m3) @ 5% Coincidence Loss
Calibration:	Meets ISO 21501-4 Calibration using NIST Traceable PSL Spheres, DMA and Condensation Particle Counter
Count Modes:	Automatic, Manual, Beep, Concentration, Cumulative/Differential, Real Time (with LMSNet or LMS Express RT software)
Data Storage:	3,000 Sample Records, Rotating Buffer (particle and environmental data with location and time)
Communication Modes:	USB, Ethernet, RS-485 and Secure Data Transfer (LSDT) to and Storage on USB Flash Drive
Supporting Software:	LMS XChange, LMS Express and Express RT; LMS Standard; LMS Pharma; CREWin
4-20mA Analog Sensors:	Optional Sensors (up to 4) Include /Temperature/Relative Humidity, Air Velocity and Differential Pressure
Touch Screen Display:	5.7-inch (14.47 cm) Color TFT Touch Screen Display
Printer:	Optional, Built-in, Thermal
Reports:	Pass/Fail Report Wizard for ISO-14644-1, EU GMP Annex 1 and FS-209 Report Formats
Enclosure:	Stainless Steel
Alarms:	Integrated Adjustable Alarm and External Alarm Connector. Alarms on Counts, Low Battery, Sensor Failure
Sample Output:	Internaly Filtered to 100% @ 0.1pm, Optional HEPA Filtration for Cooling System Exhaust
Vacuum Source:	Internal Pump, Automatic Flow Control
Power:	100-240 VAC, 50-60 Hz, External AC/DC Adapter
Battery:	Optional: Li-lon, Removable & Rechargeable (typical recharge time 7.5 hours)
Dimensions:	14.65” (I) x 8” (w) x 10.4” (h) [37 x 20 x 26 cm]
Weight:	With Battery: 26 Ibs (11.8 kg) Without Battery: 23 Ibs (10.43 kg)
Languages:	English, French, German, Italian, Spanish, Chinese, Russian, Japanese, Korean
Enironmental Conditions:
Operating:	50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage:	14°F to 122°F (-10°C to 50°C)/Up to 98% non-condensing
Aessories:
Inluded:	Operating Manual on CD; Isokinetic Sample Probe with Tripod and Tubing; Purge Filter; Power Cable and Spare Fuse; LMS XChange and Express Software; Printer; Printer Paper
Optional:	Printed Operating Manual; Network Adapter; Wireless Network Adapter; Internal Removeable, Rechargeable Battery; Carrying Case with Wheels; Cleanroom Cart; Temperature/Relative Humidity Probe; Air Velocity Probe; Differential Pressure Probe; Filter Scanning Probe; High Pressure Difuser; 32-Port Universal Manifold; LMS Express RT Software; LMSNet Software; Validation Documentation
